Trade Fair Hall 10

The special challenge of the design was to create an exhibition hall that takes up the curved character and scale of the existing halls, but in its dimensions has neither that of a standard hall (10,500 m2) nor that of the high hall (25,000 m2). From this starting position we developed the concept of the three-nave exhibition hall with a strikingly curved roof over the nave, which was made of wood. The size of the central nave takes over the scale of the standard halls.

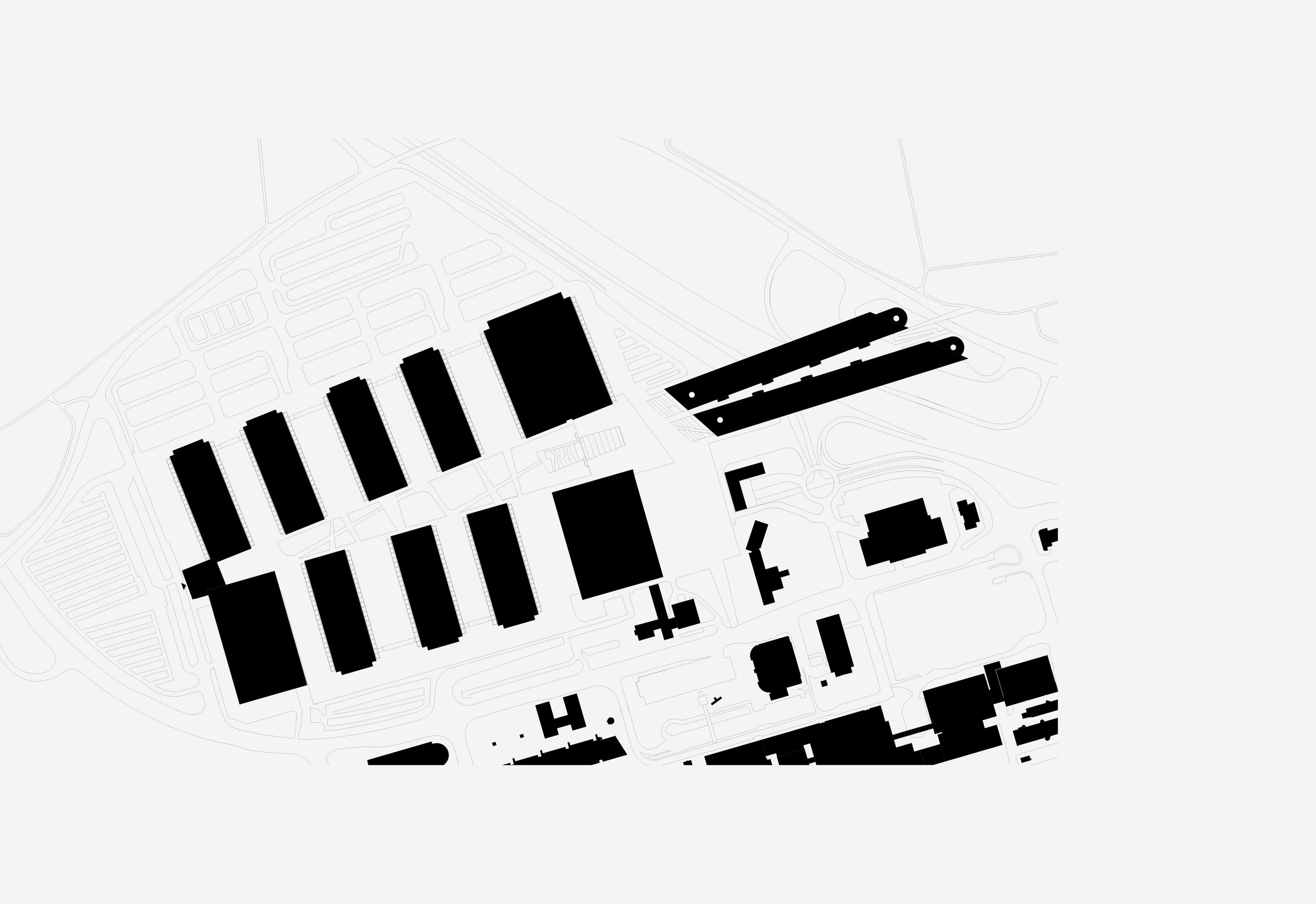

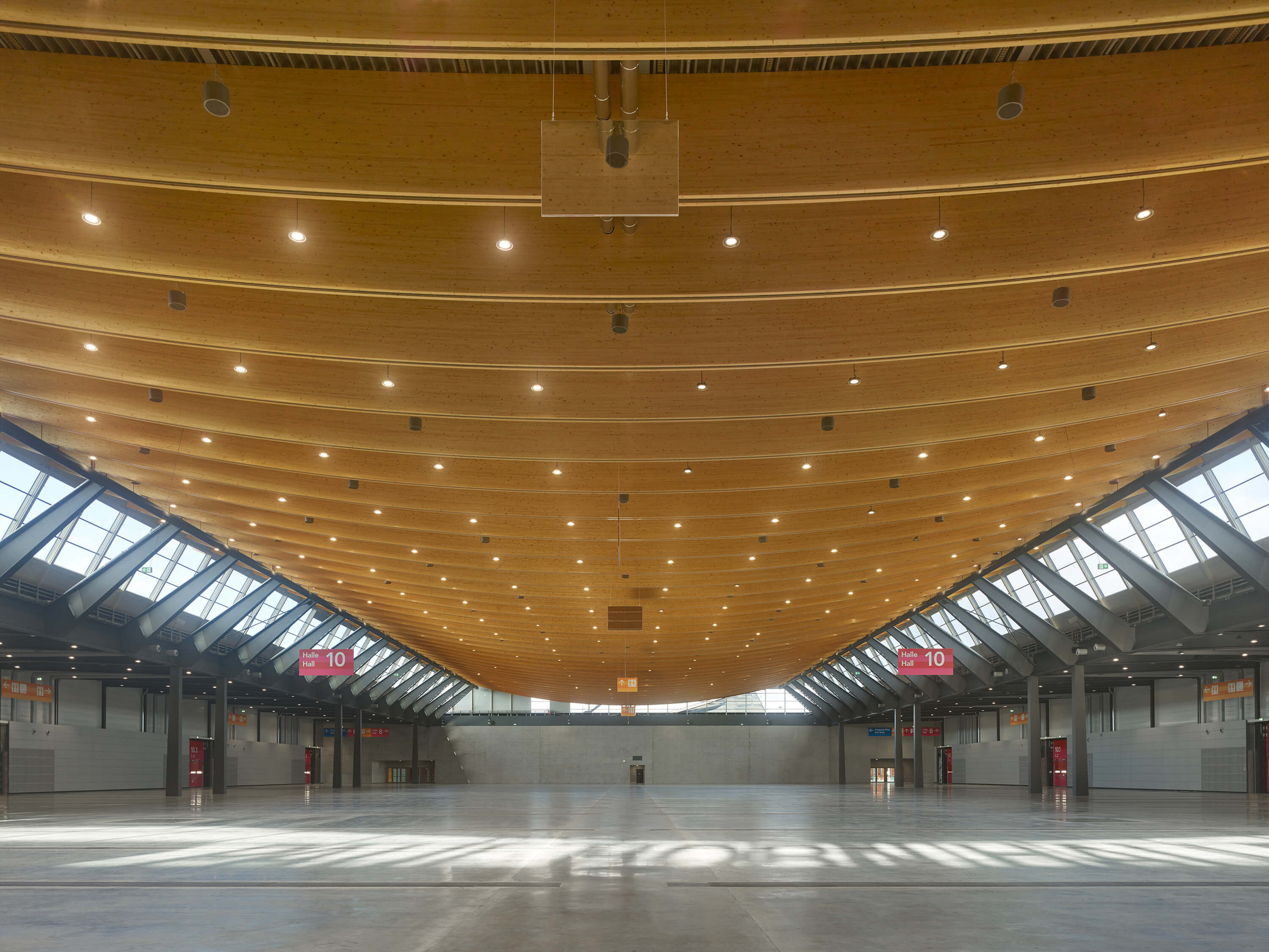

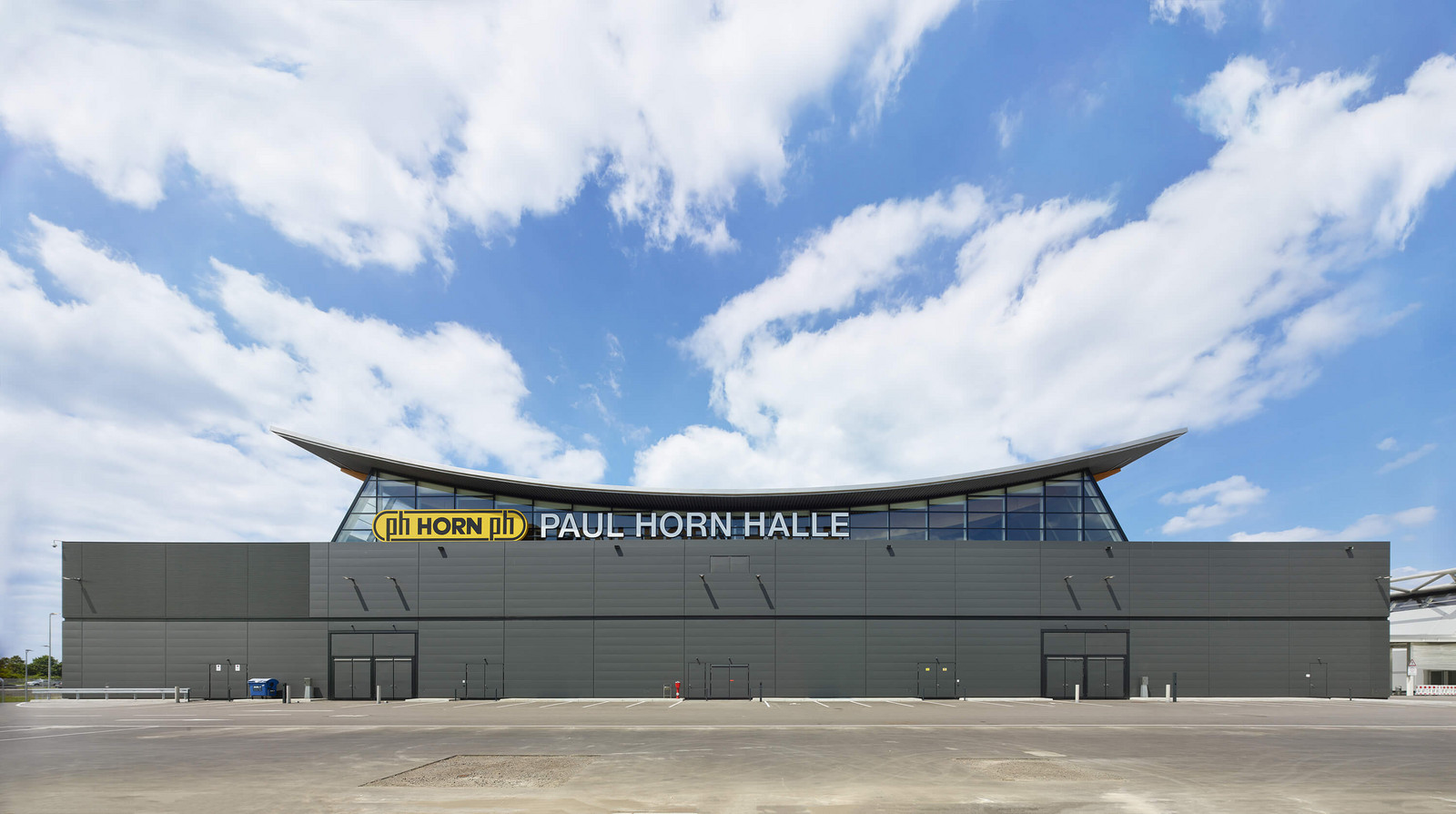

The previous west entrance was only designed as a temporary solution for the construction of the New Trade Fair Centre. The design idea from the competition in 2000 to realise the same number of halls on the north and south sides has now been implemented with the expansion. The previously asymmetrical ensemble was completed by the construction of the new Hall 10 (Paul Horn Hall). The new building, whose central nave is spanned by 68-metre-long laminated wood beams, offers an exhibition area of approx. 14,500 square metres. With its shape it further develops the curved silhouette of the existing exhibition halls. The extension was built with an upgrading of the west entrance. In front of it, a newly designed plaza was built, which is to be connected to the U6 light rail line.


Direct commission
09 2013

Start of planning
09 2013

01 2018

Projektgesellschaft Neue Messe GmbH & Co. KG, Stuttgart

Messepiazza 1, 70629 Stuttgart


Construction costs
appr. 67 Mio. Euros

Service phases

Planning team
Kai Bierich, Harald Baumann (PL), Steffen Ganzenmüller, Richard Pulz, Katharina Wiesinger

Construction management
Jo Carle Architekten, Stuttgart

Project management
Drees & Sommer GmbH, Stuttgart

Structure planning
Boll & Partner - Structural Engineers VBI GmbH & Co. KG, Stuttgart

Landscape design
Adler & Olesch Landschaftsarchitekten GmbH, Nürnberg

© Roland Halbe
