Parking Garage Facade Zoobrücke/P22a at the Cologne Exhibition Centre

The objective was to design a facade for the parking garage that not only seems light and transparent, but also surrounds the S-shaped curved structure with a poetic-organic shell that gives it a light plasticity. The uniformly designed facade does not seem ornamental – instead, it is designed like a big organic structure that gives the impression that it breathes.

more

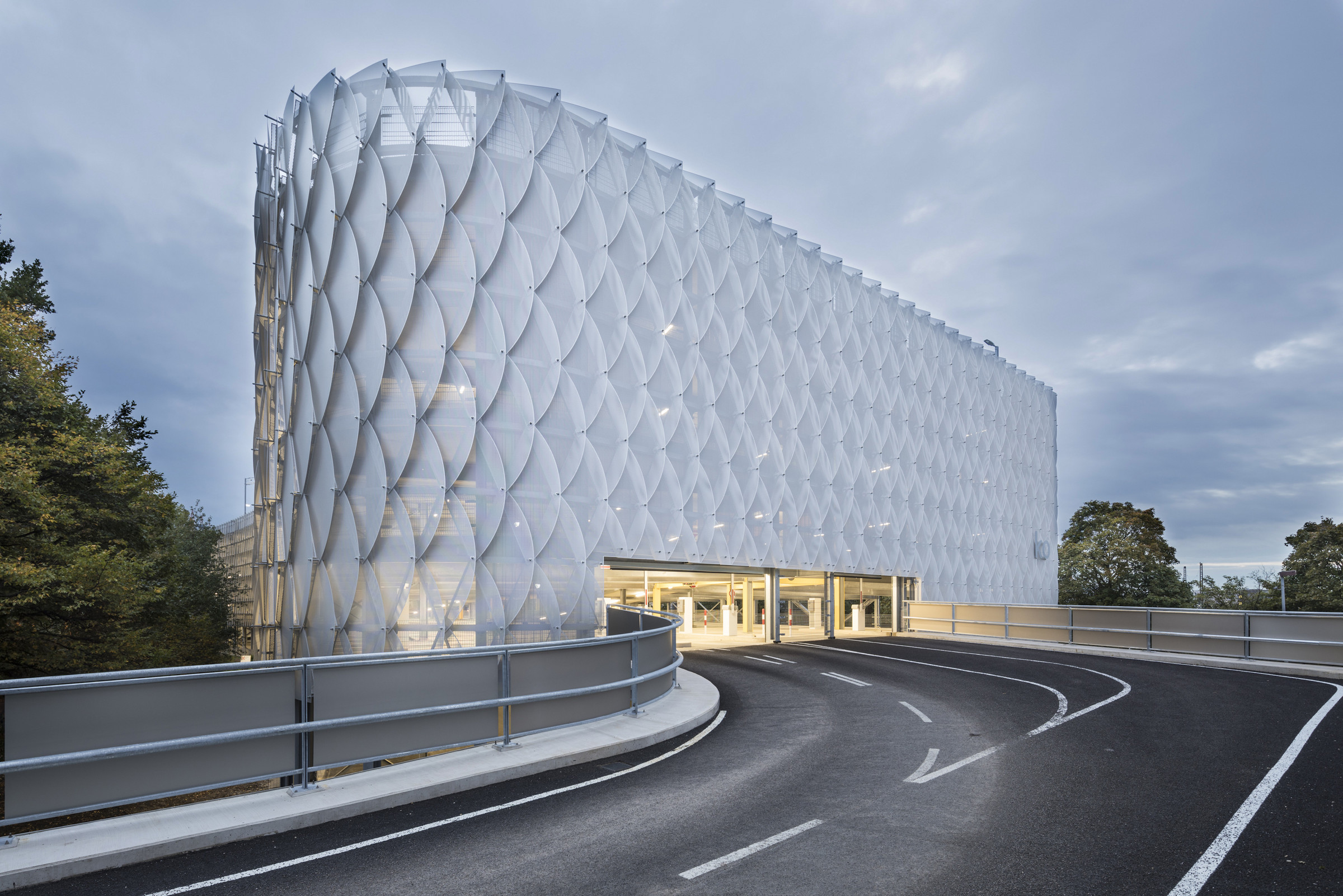

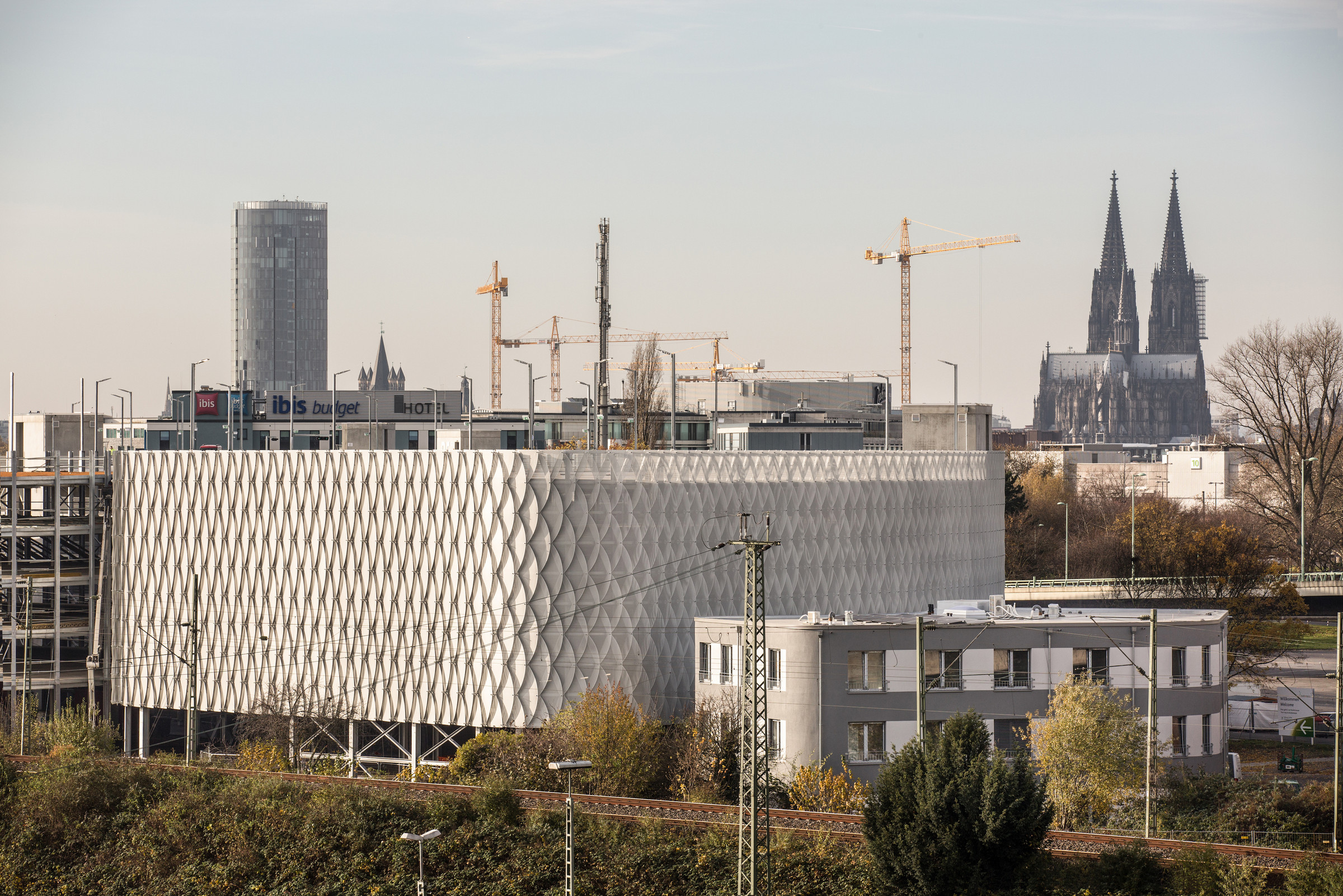

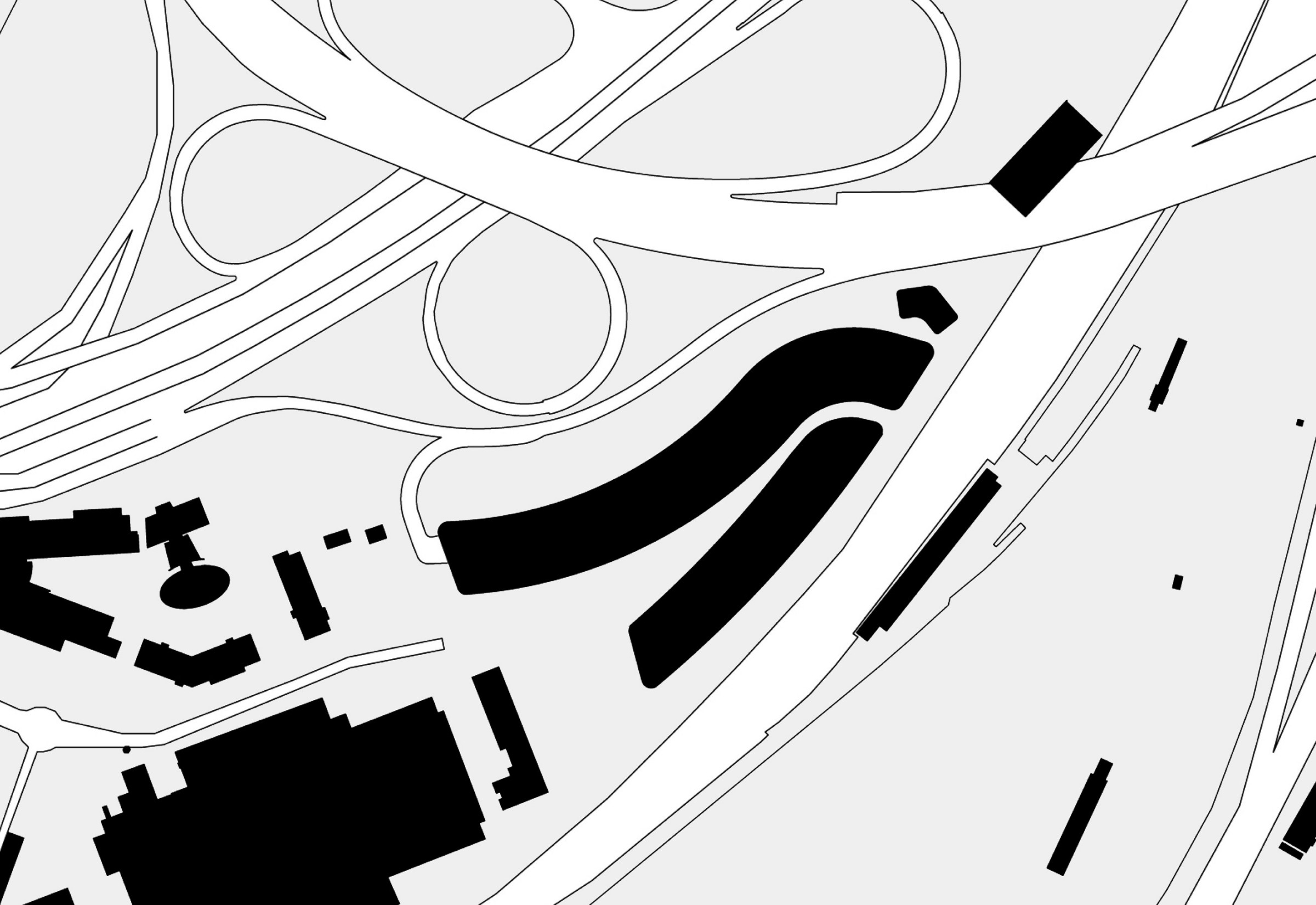

The P22a parking garage (design: schultearchitekten, Cologne) at the Cologne Trade Fair is located at the Zoobrücke bridge and offers 3,250 parking spaces on 5 levels. Our task, on behalf of the Trade Fair and the city of Cologne, was to design an innovative and emblematic facade for the existing S-shaped curved plan.

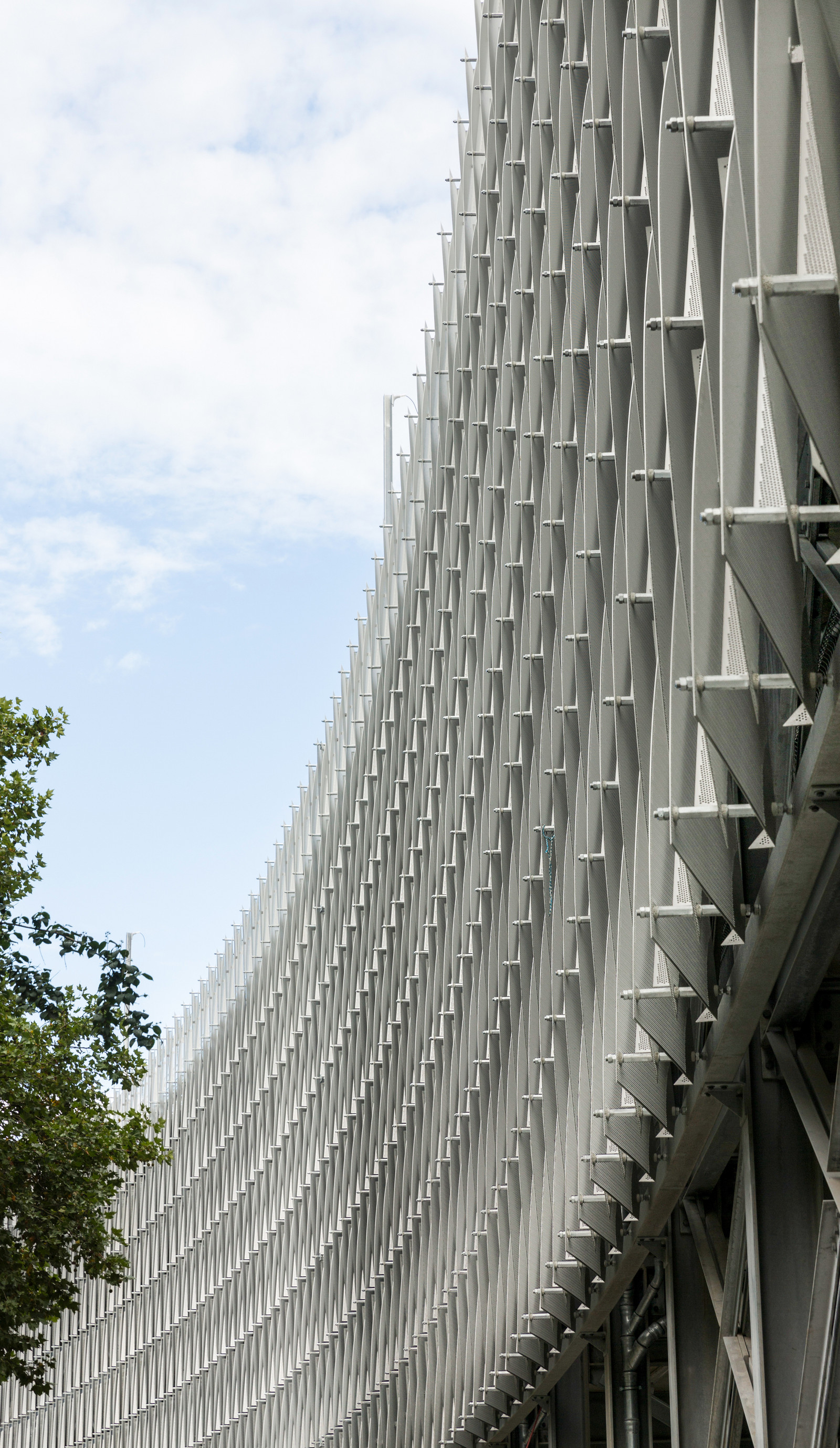

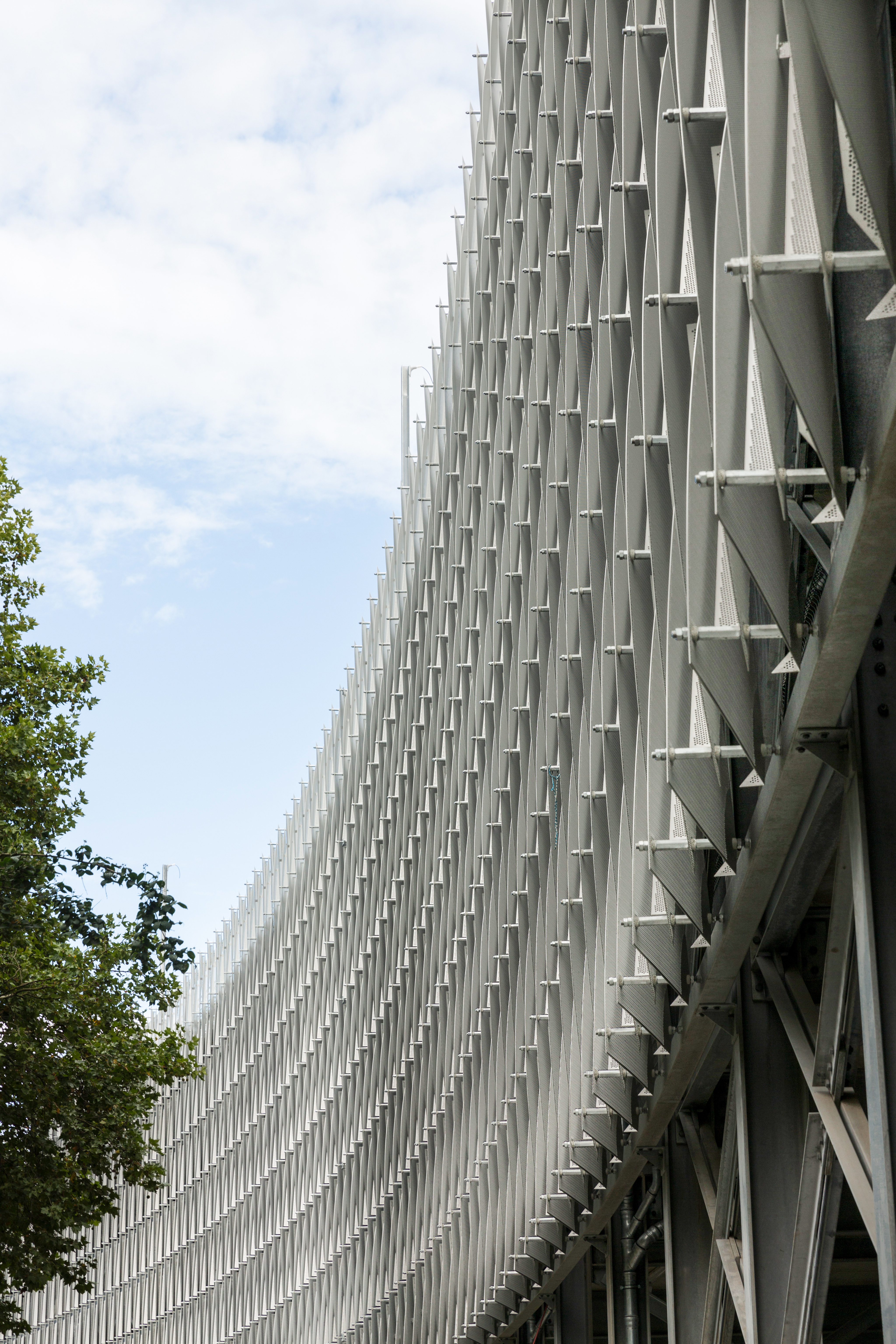

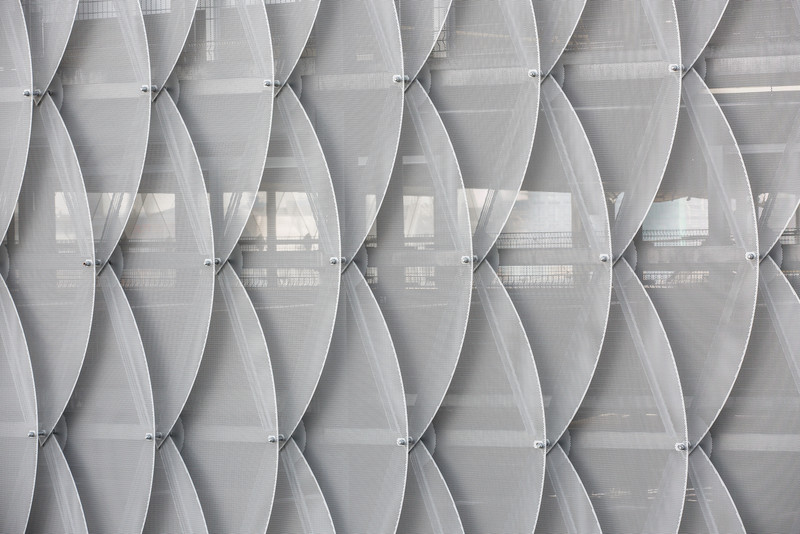

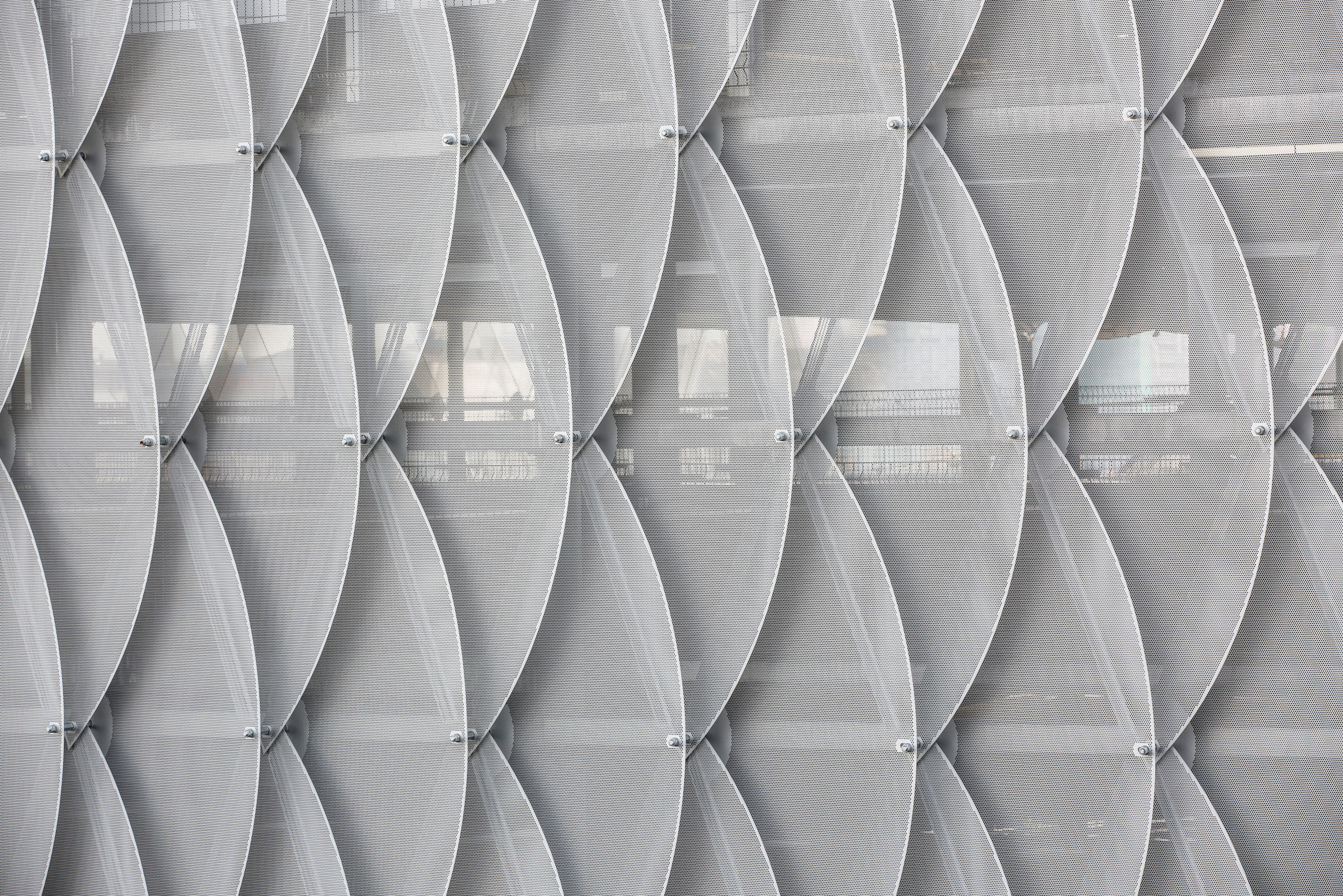

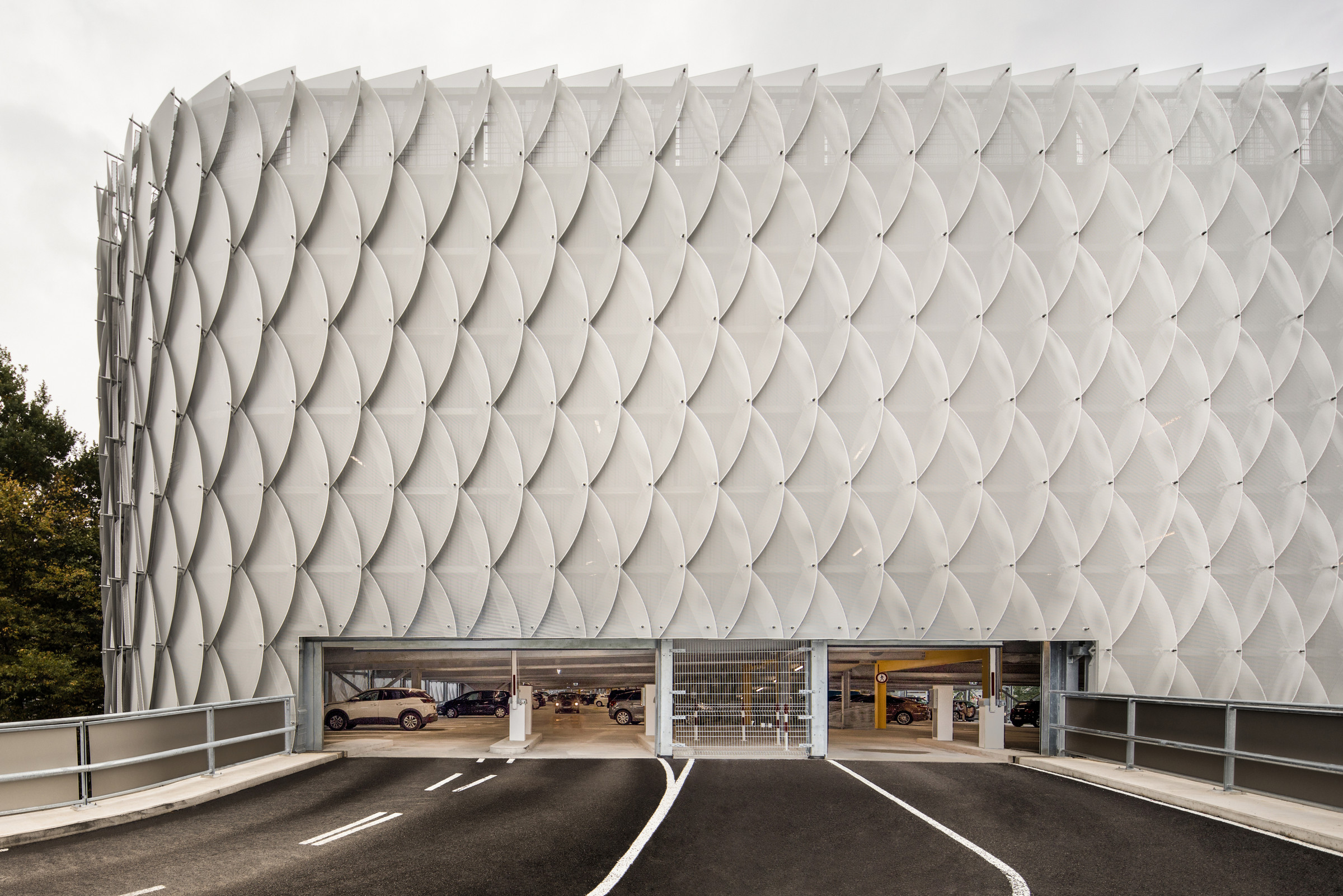

To carry out this task, roughly 3,000 laser-cut panels with edge reinforcement were manufactured from perforated metal. The gill-like gaps and the perforations of the panels themselves ensure the natural throughflow of air needed in the parking garage and also provide sufficient natural lighting of its interior. The overlapping metal panels create interesting geometric patterns that evoke a sensuous, emblematic symbolism, especially at night.

less

VOF procedure
12 2015 / 1st prize

Start of planning
01 2016

Completion
01 2018

Client
Koelnmesse GmbH, Köln

Location
Pfälzischer Ring 105, 50679 Köln

more

Construction costs
appr. 1 Mio. Euros

Service phases
2,3 and 5

Planning team
Kai Bierich, Manuel Cabezas (PL)

General contractors
dip Deutsche Industrie- und Parkhausbau GmbH, Bad Honnef

Project management
IQ Real Estate, Düsseldorf

Architecture parking garage
schultearchitekten gmbh

Photos
© Tobias Vollmer
